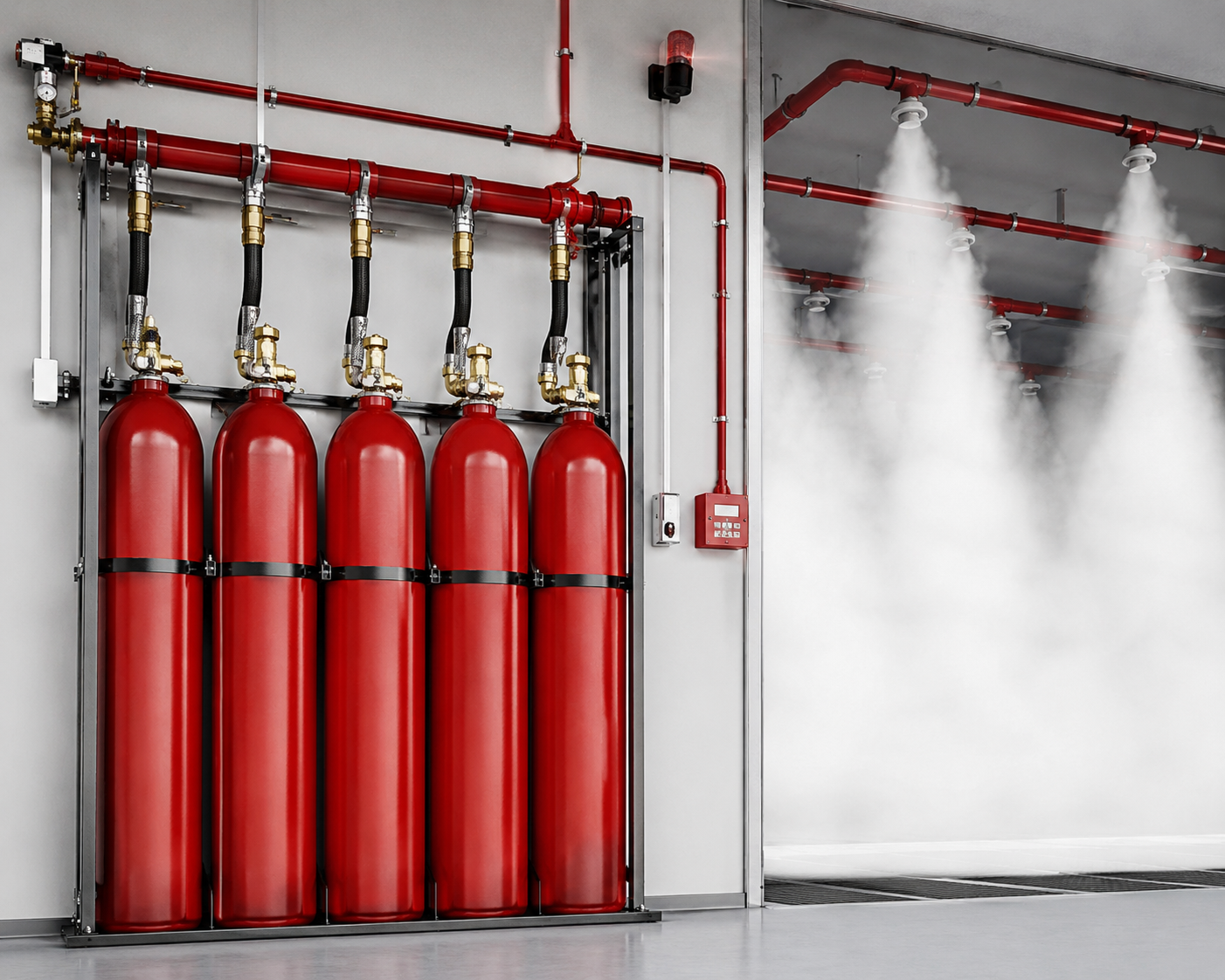

CO2 Fire Suppression & Flooding Systems
System Overview
Brand:
AUREX
Agent:
Carbon Dioxide (CO2)
Standard:
NFPA-12 / BIS 6382
Approved:
PESO / ISI / CIMFR
DOWNLOAD BROCHURE
CO2 Suppression Configurations
Carbon Dioxide is a highly efficient smothering agent. Aurex offers three primary designs according to the hazard scope:
1. Indirect High Pressure (IHP) System:
Uses the polymer detection tube strictly to sense fires and activate the indirect valve. Rupturing of the tube drops internal pressure, which diverts high-flow CO2 out of the cylinder into separate piping network to discharge through nozzles.
2. Direct High Pressure (DHP) System:
The polymer detection tube acts as both the sensor and discharge channel. In a fire, it bursts at the hottest point (88°C) and sprays the CO2 agent directly through the burst point.
3. Total Flooding Gas System:
Designed for larger volumes. Connected through manifolds, electronic master valves, and slave pressure valves, discharging CO2 into a room/enclosure via a centralized control solenoid system.
| Brand Name | AUREX |
|---|---|
| System Types | Direct High Pressure (DHP) / Indirect High Pressure (IHP) / Total Flooding |
| Extinguishing Agent | Carbon Dioxide (CO2) Gas |
| System Design Codes | NFPA-12, BIS 6382 |
| Cylinder Approvals | PESO / CCOE / ISI Approved Cylinder Bodies |
| Storage State | Liquid under high pressure (Filling Ratio 0.667 Kg/Ltr) |
| Extinguishing Method | Oxygen Smothering (displacing oxygen) & Cooling |
| Density compared to Air | 60% higher than dry air (settles quickly in low areas) |
| DHP/IHP Cylinder Capacity | 2 Kg, 4.5 Kg, 6.5 Kg, 9 Kg, 22.5 Kg |
| Flooding Cylinder Capacity | 22.5 Kg (34 Ltr) / 45 Kg (68 Ltr) |
| Tube Burst Temp (UL Listed) | 88°C (Automatic detection tube) |
| Electrical Safety | Intrinsically safe for electrically charged areas |
| Actuation Options | Solenoid 24 VDC / Linear Heat Tube / Manual Release override |
| Safe for Humans | No (Causes suffocation. Strictly restricted to unoccupied spaces/enclosures or requires delay alarms) |
System Components & Spares
Equipped with PESO-approved cylinder bodies, specialized high-pressure valves, weighing scales for gas loss monitoring, and flameproof electrical controls.
CO2 High Pressure Seamless Cylinders (PESO & ISI Marked)
Direct High Pressure (DHP) / Indirect High Pressure (IHP) Valves (PESO)
UL Listed Linear Pneumatic Heat Detection Tube (Burst Temp 88°C)
Master Valve & Slave Valves (pressure actuated for multi-cylinder banks)
Aluminium Spinning Horns & Brass Chrome Plated Diffuser Nozzles
Flameproof Discharge Pressure Switch (CIMFR Approved)
Flameproof Solenoid Actuator Rotex (PESO Approved)
Weighing Systems (Dial Type, Load Cell, or LED Weight Monitoring Panel)
Manifolds, Check Valves, Flexible Hoses, & Stainless Steel fittings
Key System Features
Extremely rapid knockdown - suppresses fires within seconds
Intrinsically safe automatic detection requiring no external electric power (DHP/IHP)
No false alarms or discharges - activates only on direct heat impingement at 88°C
Equipped with electronic monitoring scales (load cells) to track gas weight dynamically
Flexible manifold setups to protect large hazards with centralized banks
Leaves zero chemical residue, meaning zero cleaning post-discharge
Safety Warning
[!IMPORTANT]
Carbon Dioxide displaces oxygen to suppress fires and can cause immediate asphyxiation. It should only be installed in unoccupied machinery areas, locked rooms, or closed switchgear cabinets. For open areas where humans might be present, systems must include warning alarms and mechanical pre-discharge delays.
Carbon Dioxide displaces oxygen to suppress fires and can cause immediate asphyxiation. It should only be installed in unoccupied machinery areas, locked rooms, or closed switchgear cabinets. For open areas where humans might be present, systems must include warning alarms and mechanical pre-discharge delays.
Typical Applications
CO2 Fire suppression systems are particularly effective on high voltage equipment and heavy machinery where fast-acting, non-conductive gas is required to suppress intense thermal loads.
Electrical Panels (LT / HT Panel Rooms)
Process Control Units & Control Rooms (Power Plants, Refineries)
Transformers & Electrical Sub-Stations
Fume Hoods & Process Molding Machines
Enclosed Automated Milling/CNC Machines
Rolling Mills, Turbines & Cement Industries
